Single Or Multi Layer HDPE PE Plastic Pipe Making Machine
Single Or Multi Layer HDPE PE Plastic Pipe Making Machine
Single Or Multi Layer HDPE PE Plastic Pipe Making Machine
Single Or Multi Layer HDPE PE Plastic Pipe Making Machine

Single Or Multi Layer HDPE PE Plastic Pipe Making Machine

Product Details

Place of Origin: China

Brand Name: wangyuan

Certification: SGS

Model Number: pe pipe line

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 39999-93333usd

Packaging Details: film

Delivery Time: 50days

Payment Terms: L/C T/T

Supply Ability: 5 set per month

Get Best Price

Product Details

Product Description
Highlight:

Single Layer HDPE Pipe Making Machine

,

Multi Layer HDPE Pipe Making Machine

,

PE Plastic Pipe Making Machine

Name:
Plastic Pipe Extrusion Line
Application:
Plastic Extrusion Machine
Extruder Model:
SJ75/38 SJ90/38 SJ120/38 Extruder
Extruder:
SJ75/38 High Speed Single Screw Extruder
Mould:
20-110mm And 110-315mm
Warranty:
1 Year
Pipe Wall Thickness:
Max 40-50mm
Motor:
80-132KW
Name:
Plastic Pipe Extrusion Line
Application:
Plastic Extrusion Machine
Extruder Model:
SJ75/38 SJ90/38 SJ120/38 Extruder
Extruder:
SJ75/38 High Speed Single Screw Extruder
Mould:
20-110mm And 110-315mm
Warranty:
1 Year
Pipe Wall Thickness:
Max 40-50mm
Motor:
80-132KW

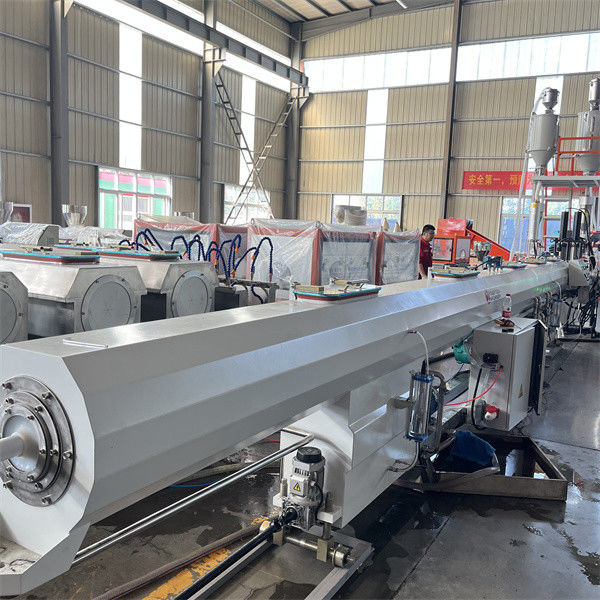

Single Or Multi Layer HDPE PE Plastic Pipe Making Machine

HDPE pipe prodution line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1600mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. It also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.



1. PE HDPE PPR pipe extrusion machine line is a specialized equipment used for manufacturing high-density polyethylene (HDPE) and polypropylene random copolymer (PPR) pipes.
2. This machine line is designed to produce pipes of various diameters and lengths, meeting the specific requirements of different applications.
3. The extrusion process involves melting the raw material, such as PE or PPR granules, and forcing it through a die to create a continuous pipe shape.
4. The machine line consists of several components, including an extruder, a die head, a vacuum calibration tank, a haul-off unit, and a cutting machine.
5. The extruder is the main part of the machine, responsible for melting and homogenizing the polymer material before it is extruded through the die.
6. The die head determines the final shape and dimensions of the pipe, and it can be customized to produce pipes of various sizes and specifications.
7. The vacuum calibration tank is used to cool and solidify the extruded pipe, ensuring its dimensional accuracy and preventing deformation.
8. The haul-off unit pulls the pipe at a constant speed, controlling its tension and preventing sagging or stretching during the production process.
9. Finally, the cutting machine cuts the extruded pipe into desired lengths, ready for packaging and distribution.
10. PE HDPE PPR pipe extrusion machine line is widely used in industries such as construction, agriculture, and plumbing, providing a cost-effective and efficient solution for pipe manufacturing.


Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 0Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 1Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 2

 Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 3

Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 4

Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 5



Single Or Multi Layer HDPE PE Plastic Pipe Making Machine 6
