high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery
high output Wire Extruding Machine Ldpe Extruder Machinery

high output Wire Extruding Machine Ldpe Extruder Machinery

Product Details

Place of Origin: China

Brand Name: Wangyuan

Certification: SGS

Model Number: pe pipe line

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 29999-78777usd

Packaging Details: film

Delivery Time: 45 days

Payment Terms: TT , L/C

Supply Ability: 50 sets

Get Best Price

Product Details

Product Description
Highlight:

High Output Wire Extruding Machine

,

Ldpe Extruder Machinery

,

Wire Extruding Machine Ldpe

Name:
PE Pipe Equipment
Application:
Plastic Pipe Extrusion Machine
Extruder Model:
Water Pipe Extruder
Extruder:
High Speed Single Screw Extruder
Mould:
Three Layers Pipe Mould
Pipe:
HDPE Water Pipe Conduit Pipe Extrusion Line
Motor:
80KW
Warranty:
1 Year
Name:
PE Pipe Equipment
Application:
Plastic Pipe Extrusion Machine
Extruder Model:
Water Pipe Extruder
Extruder:
High Speed Single Screw Extruder
Mould:
Three Layers Pipe Mould
Pipe:
HDPE Water Pipe Conduit Pipe Extrusion Line
Motor:
80KW
Warranty:
1 Year
high output Wire Extruding Machine Ldpe Extruder Machinery

Plastic PE/PP/PPR/HDPE/LDPE Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine

Product Description

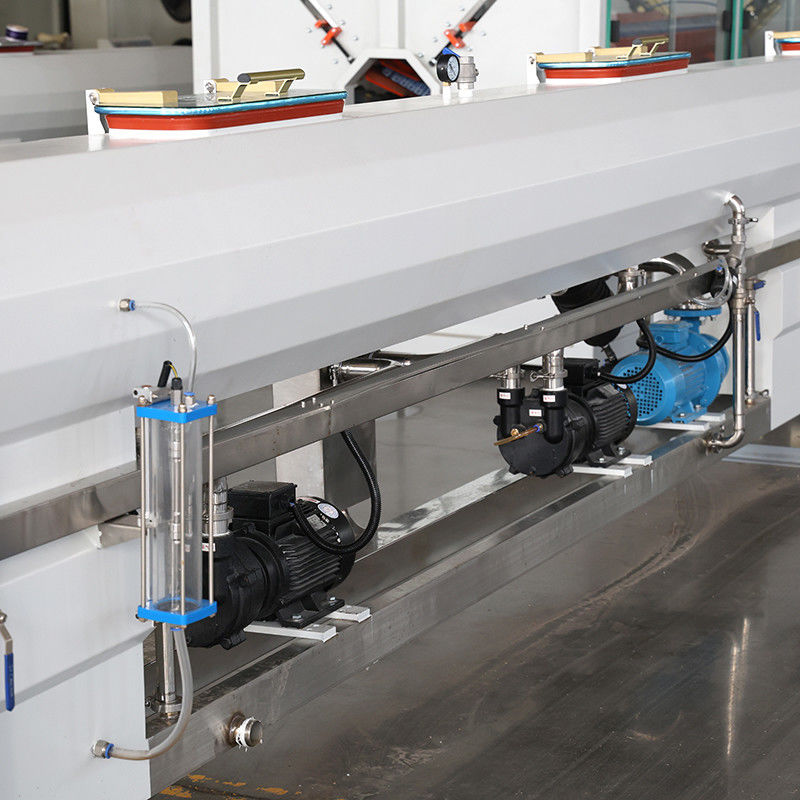

PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.

Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

PE Pipe Extrusion Machine Features:
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

Diameter Type Max.Capacity(kg/h) Max.Haul Off Speed(m/min) Power
20-63 SJ65/33 220 12 55
20-110 SJ65/33 220 12 55
50-160 SJ75/33 400 10 110
90-250 SJ90/33 400 6 110
160-450 SJ120/33 500 4 160
400-630 SJ120/33 850 2 280
500-800 SJ120/33 850 2 280
315-630 SJ120/33 850 2 355
500-800 SJ150/33 1100 1 400

high output Wire Extruding Machine Ldpe Extruder Machinery 0

high output Wire Extruding Machine Ldpe Extruder Machinery 1high output Wire Extruding Machine Ldpe Extruder Machinery 2high output Wire Extruding Machine Ldpe Extruder Machinery 3high output Wire Extruding Machine Ldpe Extruder Machinery 4

high output Wire Extruding Machine Ldpe Extruder Machinery 5high output Wire Extruding Machine Ldpe Extruder Machinery 6

high output Wire Extruding Machine Ldpe Extruder Machinery 7
