 Micro Tubes COD Corrugated Optic Duct For Highway Threading Pipe Machine

COD communication cluster tubes are a new type of micro-cable protection sleeve. They are made by extruding HDPE (high-density polyethylene) resin and have the following advantages:

1. Strong compression resistance: The inner tubes of COD tubes are tightly attached to the inner wall of the outer tube during the production process. The inner tubes are smooth, which makes the construction convenient.

2. Strong compression resistance: The inner tubes of COD tubes are tightly attached to the inner wall of the outer tube during the production process. The inner tubes are smooth, which makes the construction convenient.

3. Strict pressure testing: The inner tubes of COD tubes are pre-tested with strict pressure before being used in the production of the complete COD tubes. In addition, the special helical shape of the outer tube enhances the compression resistance of the traditional PE straight tubes. Therefore, the compression resistance of COD tubes is extremely strong. Even in the event of an earthquake or building collapse, it can ensure safety.

4. Strong acid and alkali resistance: COD tubes have extremely strong acid and alkali resistance, so they can be corrosion-resistant during the laying process in sea water or wetlands, thereby protecting the communication line.

5. Long production length: The production length of COD tubes can reach more than 1,000 meters per roll, thereby improving the laying efficiency of communication lines.

The advantages and functions of the cluster tube and COD tube equipment:

Advantages:

• High efficiency in production and processing.

• Stable performance and reliable quality.whatsapp 008615753291269

Functions:

• It is mainly used for the production and installation of pipeline systems, providing a stable and reliable pipeline connection.

• Can meet the requirements of different engineering applications, ensuring the smooth operation of the pipeline.

Cod communication bundled tubes are mainly used in the field of underground pipelines in communication lines, especially in highway optical cable pipelines. It can also be used in municipal projects, such as threading, optical cable threading, construction projects, etc. In the industrial field, Cod communication cluster pipes can be used as wiring pipes in chemical industry, environmental protection and other industries. In addition, it can also be used in electrical and telecommunications engineering as a protective tube for various power cables.

Cod communication bundle tube outer diameter dimensions can vary based on specific product models and specifications. The outer diameter of common Cod communication bundle tubes is generally between 25mm and 2200mm.

In actual applications, the specific outer diameter size may vary due to different manufacturers, product series and customer needs. If you need to know the outer diameter size of a specific model or specification of Cod communication bundle tube, it is recommended to refer to the technical specification sheet, product manual of the relevant product or contact the manufacturer to obtain accurate information.

whatsapp 008615753291269

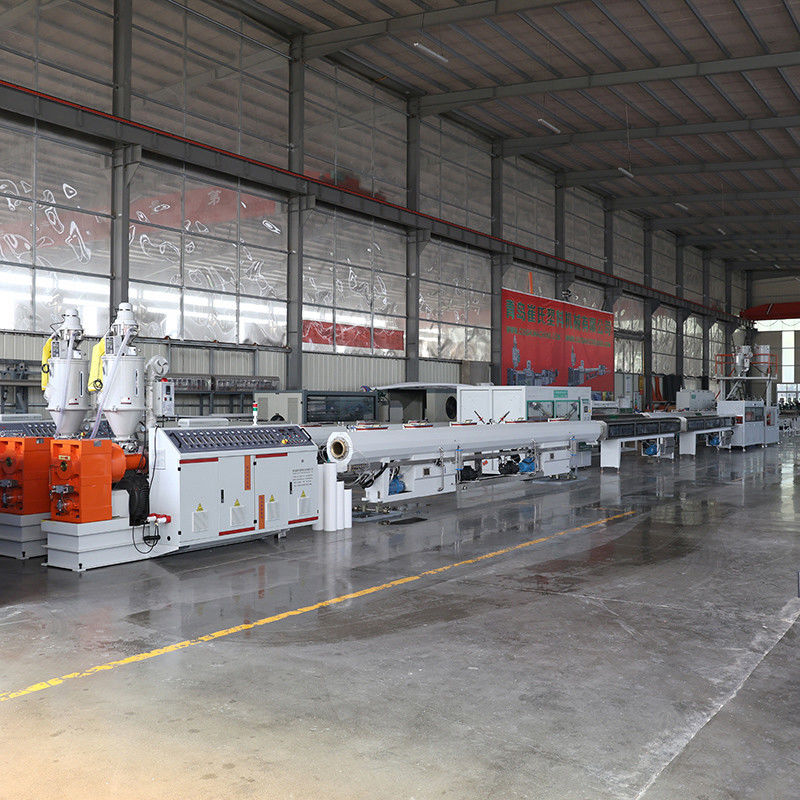

The cod pipe coating pipe line

Co-extrusion Line for the outside pipe with five pipes

Unload pipe table 7 sets

Guiding Device( guiding pipes go into the combined extruder) 7 sets

Combined System: 1 unit

SJ-90/30 Single Screw Extruder 1 set

This extruder is mainly used for the extruding of pipes and it is equipped with a hard tooth surface speed reducer, both the gear and the axis are made of alloy steel and have been processed by nitriding and grinding. The material of the screw and the charging barrel is 38CrMoALA with nitrogen treatment. The screw adopts special type protective screen plasticization panel, it has autoregulation digital display switchboard and a Siemens contactor. The temperature control meter is RKC made in Japan. Its main engine is frequency controlled and it is equipped with an automatic charging machine.

Main technical parameter:

Screw diameter: ф90mm

L/D 30:1

Rotate speed of the screw: 10-90r/min

Extruding output(max): 160-200kg/h

Heating power: 28KW

Main engine power: 45KW

Heating sections 3

Heating type stainless steel electric heating unit

Mouth mould control temperature Stepless voltage regulator temperature

Heating power 12kw

Mould

Pipe diameter 110mm

Mould type Spiral Approach

Mould material Copper, forming surface polishing

Pipe-forming Machine 1set

Forming mode: vacuum forming

Vacuum air pump power: 5.5KW

Transmission power: 3KW

Mode of speed regulation frequency control (delta)

Azimuth adjustment 3D adjustment

Production speed 0.5-3m/min

Hauling Machine 1set

Effective hauling length 1200mm

Mode of speed regulation frequency control(simence Brand)

Hauling power 3.7KW

Hauling speed 0.5-3m/min

Hauling form: slab rubber type

Pre-warning method lamp pre-warning

Hauling 4KN

Cutting machine 1set

Cut length adjustable

Driving motor 2.2KW

Diameter of the saw bit 400mm

Coiling Machine 1set

Coiling width 1500mm

Coiling DIAMETER 3500mm

Valid coiling length 500-1000mm

Motor torque motor

Inside pipe production line length: 35mX5mX3m

Outside pipe production line length: 40Mx5Mx5m
