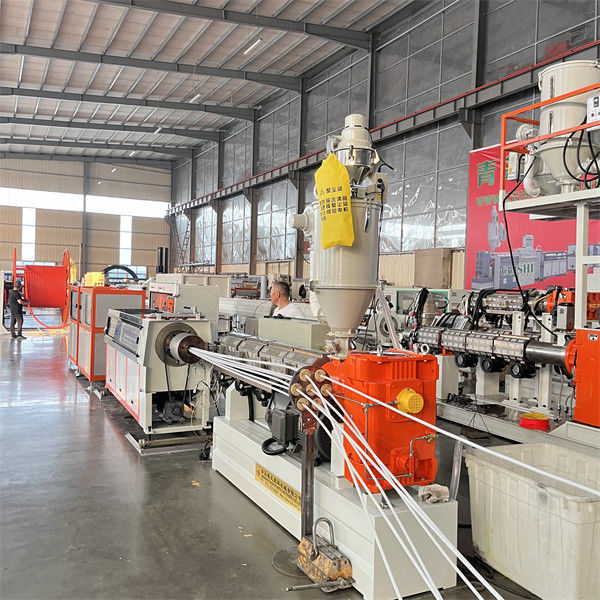

Eco Friendly Cod Pipe Coating Pipe Line Communication Cluster Tubes Making Machine

hdpe pipe manufacturing machine  hdpe pipe extrusion line    flexible pe pipe manufacturing machine

 Micro Tubes COD Corrugated Optic Duct For Highway Threading Pipe Machine

COD communication cluster tubes are a new type of micro-cable protection sleeve. They are made by extruding HDPE (high-density polyethylene) resin and have the following advantages:

1. Strong compression resistance: The inner tubes of COD tubes are tightly attached to the inner wall of the outer tube during the production process. The inner tubes are smooth, which makes the construction convenient.

2. Strong compression resistance: The inner tubes of COD tubes are tightly attached to the inner wall of the outer tube during the production process. The inner tubes are smooth, which makes the construction convenient.

3. Strict pressure testing: The inner tubes of COD tubes are pre-tested with strict pressure before being used in the production of the complete COD tubes. In addition, the special helical shape of the outer tube enhances the compression resistance of the traditional PE straight tubes. Therefore, the compression resistance of COD tubes is extremely strong. Even in the event of an earthquake or building collapse, it can ensure safety.

4. Strong acid and alkali resistance: COD tubes have extremely strong acid and alkali resistance, so they can be corrosion-resistant during the laying process in sea water or wetlands, thereby protecting the communication line.

5. Long production length: The production length of COD tubes can reach more than 1,000 meters per roll, thereby improving the laying efficiency of communication lines.

The advantages and functions of the cluster tube and COD tube equipment:

Advantages:

• High efficiency in production and processing.

• Stable performance and reliable quality.whatsapp 008615753291269

Functions:

• It is mainly used for the production and installation of pipeline systems, providing a stable and reliable pipeline connection.

• Can meet the requirements of different engineering applications, ensuring the smooth operation of the pipeline.

Cod communication bundled tubes are mainly used in the field of underground pipelines in communication lines, especially in highway optical cable pipelines. It can also be used in municipal projects, such as threading, optical cable threading, construction projects, etc. In the industrial field, Cod communication cluster pipes can be used as wiring pipes in chemical industry, environmental protection and other industries. In addition, it can also be used in electrical and telecommunications engineering as a protective tube for various power cables.

Cod communication bundle tube outer diameter dimensions can vary based on specific product models and specifications. The outer diameter of common Cod communication bundle tubes is generally between 25mm and 2200mm.

In actual applications, the specific outer diameter size may vary due to different manufacturers, product series and customer needs. If you need to know the outer diameter size of a specific model or specification of Cod communication bundle tube, it is recommended to refer to the technical specification sheet, product manual of the relevant product or contact the manufacturer to obtain accurate information.

whatsapp 008615753291269

Technical Specification of COD Cable Pipe Production Line

Inner pipe production line

I. SJ-65/30 single screw extruder 1 set

This extruder is mainly used for the extruding of pipes and it is equipped with a hard tooth surface speed reducer, both the gear and the axis are made of alloy steel and have been processed by nitriding and grinding. The material of the screw and the charging barrel is 38CrMoALA with nitrogen treatment. The screw adopts special type protective screen plasticization panel, it has autoregulation digital display switchboard and a Siemens contactor. The temperature control meter is RKC made in Japan. Its main engine is frequency controlled and it is equipped with an automatic charging machine.

Main technical parameter:

Screw diameter: ф65

L/D 38:1

Rotate speed of the screw: 10-100r/min

Extruding output(max): 300kg/h

Heating power: 18KW

Main engine power: 75KW

High-speed extruding Die head

It is made of high-quality die steel, it has a high degree of accuracy and a long life-span. It has three coextruding flow passage and a spiral structure so it has the quality of high speed, even extruding and low pressure of the die head.

IV. Vacuum-sized Water Trough

This machine is mainly used for the sizing & cooling of the pipes. It is equipped with a vacuum air pump and water pump system used for sizing and cooling. The water pump uses the circulating water inside the box, both the supplying and draining of water are controlled by valves. It is equipped with a device that can adjust fore and aft, left and right, high and low so that it realizes 3D adjustment. The main parts of the machine are made of stainless steel so the quality of the circulating water is improved.

Main technical parameter:

Length of the vacuum box: 9000mm

Vacuum air pump power: 4KW

Water pump power: 3KW

Mobile motor power: 0.75KW

Cooling way: spray-type water cooling

Spray Water Trough

This machine is mainly used for a second spray cooling of the pipes.

Main technical parameter:

Length of the vacuum box: 6000mm

Water pump power: 3KW

Cooling way: spray-type water cooling

Hauling Machine

This machine is mainly used for the moulding and hauling of the pipes, the hauling motor is frequency controlled and the transducer is Fuji made in Japan.

Effective hauling length: 800mm

Number of the pedrail: 2

Hauling speed: 0.3-18m/miu

Hauling motor power: 2.2KW

Coiling Machine

The machine is mainly used for the coiling of the pipes. It adopts memental coiling.

Main technical parameter:

Output torque: 10N.M

Coiling diameter(max) φ2600mm

Coiling meter : 1000m
