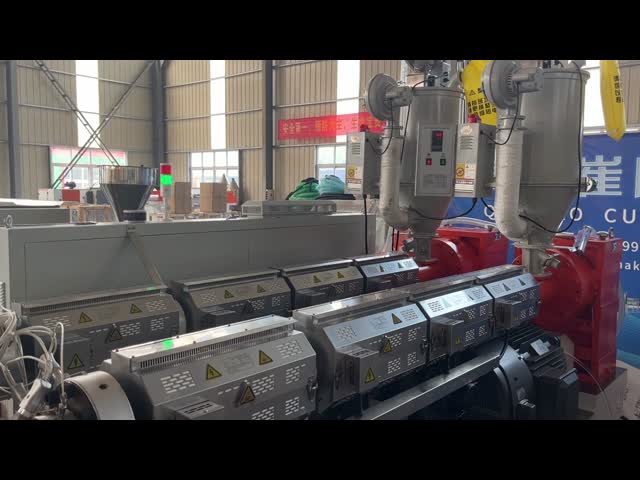

20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine
20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine
20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine

20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine

Product Details

Place of Origin: China

Brand Name: wangyuan

Certification: SGS

Model Number: pe pipe line

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 29999-58888usd

Packaging Details: film

Delivery Time: 50days

Payment Terms: L/C T/T

Supply Ability: 5 set per month

Get Best Price

Product Details

Product Description
Highlight:

20-110mm plastic pipe extrusion machine

,

2 Layers hdpe extruder machine

,

20-110mm polyethylene pipe production line

Name:
PE Plastic Water Hydraulic Extruder
Warranty:
1 Year
Application:
High Quality Water Supply And Drainage
Extruder Model:
SJ75-33 Single Screw Extruder With 55kw
Extruder:
SJ75-33 High Speed Single Screw Extruder
Mould:
20-110mm Three Layers PE Gas And Water Drainage
Pipe:
HDPE Pipe Flexible Polyethylene Pipe
Motor:
60kw
Name:
PE Plastic Water Hydraulic Extruder
Warranty:
1 Year
Application:
High Quality Water Supply And Drainage
Extruder Model:
SJ75-33 Single Screw Extruder With 55kw
Extruder:
SJ75-33 High Speed Single Screw Extruder
Mould:
20-110mm Three Layers PE Gas And Water Drainage
Pipe:
HDPE Pipe Flexible Polyethylene Pipe
Motor:
60kw
20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine

Single Screw extruder HDPE PE PP Pipe Making Extruding Plastic Extruder Pipe Machine

PE HDPE pipe making machine  HDPE pipe production machine line

This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. With CPVC pipe mold, it could also produce CPVC pipe. It is consist of SJSZ series extruder, mold, vacuum tank,spraying cooling tank, haul-off,cutting machine, stacker, and can produce PVC pipe from mixed powder directly.
The production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity stable running and easy operation.
Flow chart of PE pipe extrusion line
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)

Product Description

Matured technology 20mm 32mm 40mm HDPE PE 2 layers 3 layers water/gas pipe tube single screw co-extruder production line with inkjet printer

PE PPR pipe production line is mainly used for the HDPE, LDPE PPR water supply pipes, gas supply pipes, irrigation pipes, sewer water pipes making.

PE pipe production line major parts are all purchase the world famous brand products which ensured the high quality of the machines.

PE pipe production line purchase two kinds of control method: manual operation, PLC automatic control.

The whole production line include:
1. hopper dryer and vacuum loader
2. SJ series single screw extruder ( co-extrusion )
3. pipe moulds
4. vacuum forming machine
5. spray cooling machine
6. haul off machine
7. no dust cutter machine
8. stacker or coil winder

Product Application

1.The pipes are extruded by the first extruder and then enter the twist form machine, at the same time the basket co-extrusion mould forms pipes' shape.

2.The pipes are based on high density PE as main raw material.



Process line

Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → pipe rack → finished product inspecting&packing



Main advantage

1.This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc.
2.The pipes are widely used in high-way, municipal constructional, flats and so on.

Model
Pipe specification (mm)
Supporting extruder
Extrusion quantity (kg/h)
Main extruder power (Kw)
PE-63
16-63
SJ65/33
120-180
45
PE-110
16-110
SJ65/33
150-200
55
PE-160
50-160
SJ75/33
150-220
75
PE-250
75-250
SJ75/33
280-350
90
PE-315
110-315
SJ90/33
250-350
132
PE-450
160-450
SJ90/33
350-450
160
PE-630
315-630
SJ120/33
550-850
200
PE-800
450-800
SJ150/33
800-1300
250
PE-1000
600-1000
SJ150/33
800-1300
315

FAQ
Why choose us?
1.Low cost All the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality We choose our material very strict.
All the material come to our factory must pass the quality test Substandard goods are returned to the supplier.
3. Engerneers available to serve oversea
4.Quick delivery The company provide just in time delivery with its streamlined supply chain.
5.Cost saving Se take strong attention to every detail in the manufacturing process.
The quality control in our factory is very strict.




20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 020-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 120-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 220-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 320-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 420-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 5

20-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 620-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 720-110mm HDPE PE PPR 2 Layers Plastic Pipe Extrusion Machine 8
