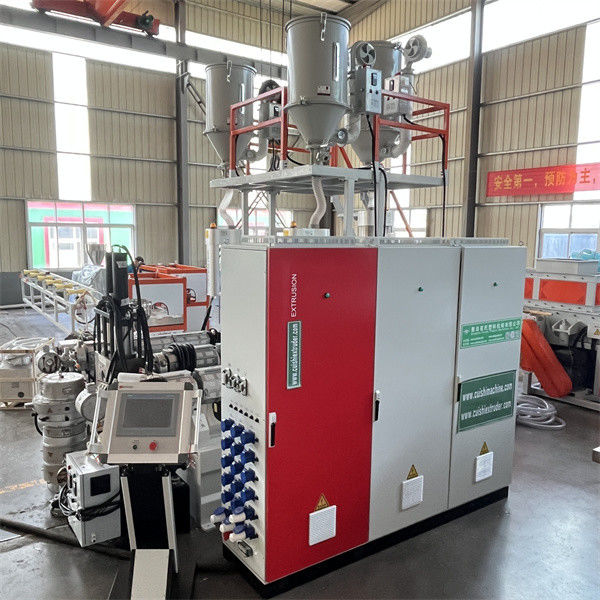

Plastic Pipe Extrusion Line HDPE PE Pipe Making Machine For Water Supply

Name: Plastic Pipe Extrusion Line HDPE PE Pipe Making Machine For Water Supply
Brand: QINGDAO CUISHI PLASTIC MACHINERY CO.,LTD
SKU: pe pipe line
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wangyuan

Certification: SGS

Model Number: pe pipe line

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 39999-48888usd

Packaging Details: film

Delivery Time: 60 days

Payment Terms: TT , L/C

Supply Ability: 16 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Water Supply Plastic Pipe Extrusion Line, Water Supply PE Pipe Making Machine, Water Supply HDPE Pipe Making Machine


Name:	PE Plastic Water Hydraulic Extruder	Warranty:	1 Year
Application:	High Quality Water Supply And Drainage	Extruder Model:	SJ75 Single Screw Extruder With 55kw
Extruder:	SJ75 High Speed Single Screw Extruder	Mould:	50-160mm Three Layers PE Gas And Water Drainage
Pipe:	HDPE Pipe Flexible Polyethylene Pipe	Motor:	60kw

Name:	PE Plastic Water Hydraulic Extruder
Warranty:	1 Year
Application:	High Quality Water Supply And Drainage
Extruder Model:	SJ75 Single Screw Extruder With 55kw
Extruder:	SJ75 High Speed Single Screw Extruder
Mould:	50-160mm Three Layers PE Gas And Water Drainage
Pipe:	HDPE Pipe Flexible Polyethylene Pipe
Motor:	60kw

Plastic Pipe Extrusion Line HDPE PE Pipe Making Machine For Water Supply

Single Screw extruder HDPE PE PP Pipe Making Extruding Plastic Extruder Pipe Machine

PE HDPE pipe making machine HDPE pipe production machine line

PE series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc. This machine consists of vacuum calibration tank,haul off unit,cutting unit,stacker etc . The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device,both vacum pump and driving motor apply famous brand .The haul-off unit includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type,ten-claw type,twelve-claw type etc.Dust fre cutting machine ,saw blade cutting machine or planetary cutting machine can be applied,the property of machine group is reliable.The production efficiency is high with special device,it can produce inner wall spiral pipe, inner wall hollow pipe ,and core layer foam pipe.It can also produce PP, PE, ABS, PPR, PERT, Silicon core pipe etc .The planetary cutting machine is controlled automatically with computer,it has such advantages of simple operation,reliable performance etc. It has reached international advanced level.

Product Application

1.The pipes are extruded by the first extruder and then enter the twist form machine, at the same time the basket co-extrusion mould forms pipes' shape.

2.The pipes are based on high density PE as main raw material.

Process line

Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → pipe rack → finished product inspecting&packing

Main advantage

1.This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc.
2.The pipes are widely used in high-way, municipal constructional, flats and so on.


			Pipe Range(mm)

			Extruder Model

			Extruder power(kw)

			Max.output(kg/h)

			20-63

			65/33

			37

			120

			50-160

			75/33

			55

			200

			75-250

			75/33

			110

			330

			90-315

			75/33

			132

			380

			160-450

			90/33

			160

			450

			315-630

			120/33

			280

			750

			400-800

			150/33

			355

			900

			710-1200

			120/33

			280

			1200

			1000-1600

			120/33

			280

			1500

Tags:

Pipe Range(mm)	Extruder Model	Extruder power(kw)	Max.output(kg/h)
20-63	65/33	37	120
50-160	75/33	55	200
75-250	75/33	110	330
90-315	75/33	132	380
160-450	90/33	160	450
315-630	120/33	280	750
400-800	150/33	355	900
710-1200	120/33	280	1200
1000-1600	120/33	280	1500
