Product Details
Place of Origin: china
Brand Name: wangyuan
Certification: SGS
Model Number: 40-130mm
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 18888-32000
Packaging Details: film
Delivery Time: 5 days
Payment Terms: T/T
Supply Ability: 100 sets
we are a professional construction machine supplier and constantly focus on the quality of our products. With experience of 25 years, we offer innovating solutions in raw material processing machine series.

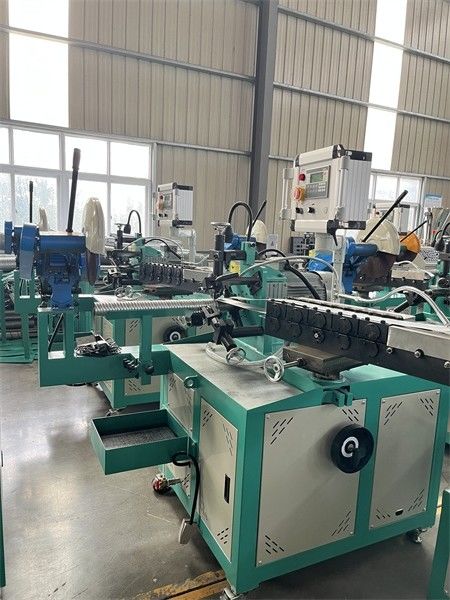

corrugated round Steel Metal Pipe Galvanized Metal Duct Making Machine
Steel pipe making machine spiral corrugated round duct forming machine
orrugated pipe machine a kind of equipment for producing pre-stressed concrete reserved tunnel metal bellows makes the galvanized steel strip coil into four wave shape then undercuts and swages to apply the bellows, Which With high efficiency and Small volume, Easy operation and maintenance, convenient and speed adjustable. It is suitable for centralized use at construction sites and factories.
Model CUISHI-110
Width of strip 78mm fixed
Thickness of steel band 0.2-0.6mm
Pipe diameter Φ40-φ130
Pipe Joint mode Four l-lock
Weight 1200Kg
Pipe rolling speed 20m/min(maximum)
Power 15KW+2.2kw
Cutting motor: Model Automatic
Power 3KW
| Name | LOGO | Specification |
| Automatic prestressed metal bellows equipment Automatic unwinding, Siemens PLC touch screen control, sinusoidal frequency converter, 15kw motor, automatic cutting, unloading, far infrared control, excluding mold |
WY | 78 steel strip Four wave design |
| 2.mould | WY | 40,45,50,55,60,65,70,75,80,85, 90,95,100,105,132mmm |
| 3.welding machine | WY |
We use 78 steel strip, not 36 steel strip. It is light in weight and fast in speed. The four ripple design is easy to control and debug. It helps customers save about 1 ton of material every day. For example, a roll of steel strip weighs 350 kg and has an inner diameter of 500. We have infrared sensing device. If there is no steel strip, we will stop automatically. The workers can connect the steel strip with our electric welding machine, and the skilled workers will complete the operation within 10 minutes
For length cutting, we have a travel switch on the reversing table. For example, everything in 10 meters will be cut automatically in half a minute
Meter weight is light, which can save customers nearly 1 ton of material in a day. Taking 85mm weight per meter as an example, the customer used to design 765G before, but now our machine is 645g, saving 120g steel belt per meter
Taking 55mm as an example, the weight of the meter produced by our machine is 397G, which saves 100g. Considering all specifications, the average material saving is 12.5% per meter, and the production speed is 2.5 times faster. The time for changing the mold and discharging the pipe is about 20 minutes, the wave height below 95mm is more than 2.5mm, and the diameter above 100mm is 3mm
