Product Details
Place of Origin: China
Brand Name: wangyuan
Certification: SGS
Model Number: pe pipe line
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 29999-58333usd
Packaging Details: film
Delivery Time: 50days
Payment Terms: L/C T/T
Supply Ability: 5 set per month
Name: |
Plastic Pipe Extrusion Line |
Application: |
Plastic Pipe Extrusion Machine |
Extruder Model: |
Water Pipe Extruder |
Extruder: |
Bundle Microduct Communication Pipe |
Warranty: |
1 Year |
Mould: |
Pipe Mould |
Pipe: |
HDPE Water Pipe Conduit Pipe Extrusion Line |
Motor: |
90KW |
Name: |
Plastic Pipe Extrusion Line |
Application: |
Plastic Pipe Extrusion Machine |
Extruder Model: |
Water Pipe Extruder |
Extruder: |
Bundle Microduct Communication Pipe |
Warranty: |
1 Year |
Mould: |
Pipe Mould |
Pipe: |
HDPE Water Pipe Conduit Pipe Extrusion Line |
Motor: |
90KW |
Plastic Pipe Extrusion Line PPR LDPE PE Bundle Microduct Communication Pipe
Plastic HDPE Pipe Extrusion Production Line / makeing machine/makeing facility
Professional HDPE PE PP PPR Materials Pipe Extrusion Machine / Production Line Machinery Specification:
All the HDPE pipe production line:
1. Automatic Feeder and drying hopper
2. SJ65/33 for inner pipe and SJ75/30 for out coating layers Single Screw Extruder
3. HDPE PIPE molds (SDR11,SDR17)
4. 9m 304 stainless Vacuum sizing tank
5. 6m spray cooling tank
6. Heating printer with all letter blocks
7. pipe haul-off unit

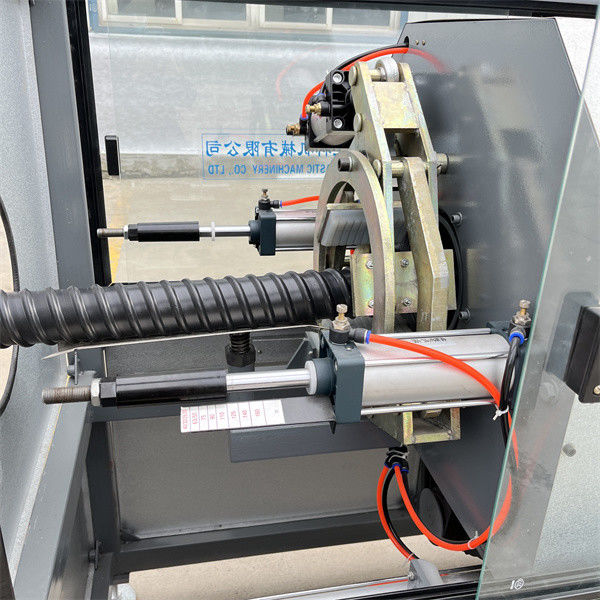

8. pipe Non scrap Cutting unit:
9. Stack unit
10. pipe single postion or double position Winder
11. pipe Stacker
HDPE Communication pipe machine have two system, one is HDPE microduct tube extrusion line, one is HDPE communication bundle pipe extrusion line. And the bundle pipe could be spiral corrugated pipe (COD pipe) or polygon pipe system.
Machinery equipment List:
1. Core pipe system include: Automatic feeder, SJ65/33 Extruder. SJ25/25 Markline extruder, Core pipe die, Vacuum tank, water tank, haul-off machine, coiler
2. Bundle Pipe system include: Uncoiler for core pipe, guiding device, coating die, 65/33 Extruder, Vacuum tank, haul off machine, coiler
Machinery Basic Informations:
| Pipe Range | Extruder Model | Main Motor | Output | Speed |
| Core Pipe 6-20mm | SJ65/33 | 30kw | 120kg/h | 1-30m/min |
|
Core Pipe 10-32mm |
SJ75/33 | 45kw | 160kg/h | 1-30m/min |
| Bundle Pipe | SJ70/33 | 30kw | 120kg/h | 0.5-6m/min |
