Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: Fiber Braided Reinforced Pipe Hose Extrusion Making Machine
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 15333-33399usd
Packaging Details: film
Delivery Time: 50 days
Payment Terms: TT , L/C
Supply Ability: 40 sets
Name: |
Hose Extrusion Making Machine |
Application: |
PVC Extruder Machine PVC Soft Fiber Reinforced Garden Hose Machine |
Extruder: |
Plastic PVC Soft Pipe Extrusion Machine Line |
Mould: |
Soft Fiber Braided Reinforced Pipe 5-50mm |
Pipe: |
Hose Machine |
Warranty: |
1 Year |
Name: |
Hose Extrusion Making Machine |
Application: |
PVC Extruder Machine PVC Soft Fiber Reinforced Garden Hose Machine |
Extruder: |
Plastic PVC Soft Pipe Extrusion Machine Line |
Mould: |
Soft Fiber Braided Reinforced Pipe 5-50mm |
Pipe: |
Hose Machine |
Warranty: |
1 Year |

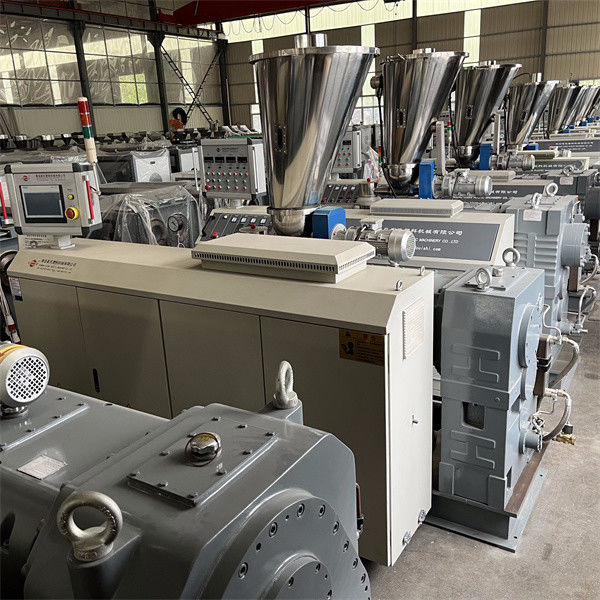

Plastic Extrusion Suppliers Plastic Pipe Extrusion Machine Dual Screw Extruder
Pvc Extruder Machine PVC Soft Fiber Reinforced Garden Hose Machine
Pvc Pipe Production Line Pvc Garden Water Hose Pipe Irrigation Watering Pvc Pipe Making Machine
16.20.32.40,50,75,90,110,160,200 Diameter Plastic PVC Pipe Extruder / Processing Line
|
Pipe diameter range
|
Extruder Model
|
Max Output
|
Max Speed
|
Total Power
|
|
16 - 50 mm
|
65 / 132 *2
|
250 kg/h
|
10 m/min
|
80kw
|
|
50 - 110 mm
|
55 / 110
|
180 kg/h
|
10 m/min
|
75kw
|
|
63 - 160 mm
|
65 / 132
|
300 kg/h
|
5 m/min
|
95 kw
|
|
110 - 250 mm
|
80 / 156
|
500 kg/h
|
3.5 m/min
|
125 kw
|
|
250 - 450 mm
|
92 / 188
|
700 kg/h
|
1.5 m/min
|
220kw
|
|
315 - 630 mm
|
92 / 188
|
700 kg/h
|
0.9 m/min
|
250 kw
|
PVC single cavity production line :
Φ20-Φ630 series PVC pipe extrusion production line is mainly used in plastic PVC pipes with various diameters and wall thickness, This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, such as, spiral silencing pipe and core foaming pipe according to your requirements.
PVC double-pipe production line:
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration, it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
