Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: extrusion plastic pipes
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 28888-37333usd
Packaging Details: film
Delivery Time: 65 days
Payment Terms: TT , L/C
Supply Ability: 28 sets
Name: |
Twin Screw Co Rotating Extruder |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
SJSZ80/156 PVC Twin Screw Plastic Extruder |
Extruder: |
Pvc Pipe Extrusion Pvc Extruder Machine Pvc Pipe Making Machine Twin Screw Extruder |
Mould: |
CPVC Pipe Mold Machine |
Warranty: |
1 Year |
Pipe: |
Pvc Pipe Production Line |
Pipe Output: |
Twin Screw Extruder Plastic Extrusion |
Name: |
Twin Screw Co Rotating Extruder |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
SJSZ80/156 PVC Twin Screw Plastic Extruder |
Extruder: |
Pvc Pipe Extrusion Pvc Extruder Machine Pvc Pipe Making Machine Twin Screw Extruder |
Mould: |
CPVC Pipe Mold Machine |
Warranty: |
1 Year |
Pipe: |
Pvc Pipe Production Line |
Pipe Output: |
Twin Screw Extruder Plastic Extrusion |

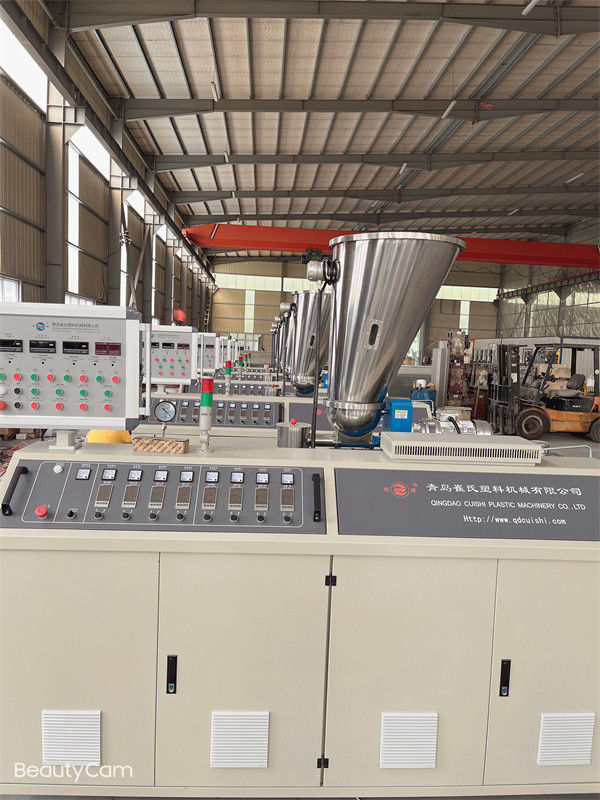

PVC pipe making machines, also known as PVC pipe extrusion lines, are the key equipment used in the manufacturing process of PVC pipes. These machines are designed to take raw materials, typically PVC resin, and convert them into finished PVC pipes of various sizes and specifications. Here are the main components of a typical PVC pipe making machine:
1. Extruder: The extruder is the heart of the PVC pipe making machine. It consists of a heated barrel with a rotating screw inside. The PVC resin, along with additives and stabilizers, is fed into the extruder. The screw conveys the material forward, heats it, and melts it into a molten state.
2. Die Head: The molten PVC material from the extruder is passed through a die head. The die head determines the size and shape of the PVC pipe being produced. It imparts the desired profile and dimensions to the molten PVC, shaping it into a pipe form.
|
No.
|
Model
|
Motor Power
|
Capacity
|
Control System
|
|
1
|
SJSZ65/132
|
30KW innovince servo motor
|
150-250Kg/h
|
PID or PLC
|
|
2
|
SJSZ80/156
|
75KW innovince servo motor
|
450-650Kg/h
|
PID or PLC
|
|
3
|
SJSZ92/188
|
132KW
|
600-850Kg/h
|
PID or PLC
|
Good Quality 16-630mm PVC Pipe Twin Screw Extruder Making Machine
Φ16-40mm four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.
