Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: extrusion plastic pipes
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 18888-33333usd
Packaging Details: film
Delivery Time: 65 days
Payment Terms: TT , L/C
Supply Ability: 28 sets
Name: |
Twin Screw Extruder Plastic |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
Plastic Conical Twin Screw Extruder |
Extruder: |
Pvc Pipe Extrusion Pvc Extruder Machine Pvc Pipe Making Machine Twin Screw Extruder |
Mould: |
Pipe Mold Machine |
Warranty: |
1 Year |
Pipe: |
Extruder Screw Barrel |
Pipe Output: |
Tube Extrusion |
Name: |
Twin Screw Extruder Plastic |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
Plastic Conical Twin Screw Extruder |
Extruder: |
Pvc Pipe Extrusion Pvc Extruder Machine Pvc Pipe Making Machine Twin Screw Extruder |
Mould: |
Pipe Mold Machine |
Warranty: |
1 Year |
Pipe: |
Extruder Screw Barrel |
Pipe Output: |
Tube Extrusion |
|
Name of Commodity
|
Quantity
|
|
PVC pipe production line 1 set Double Screw Extruder – SJSZ51/105 1 set auto screw loader 1 set Mould 20-60mm 1 set of Vacuum calibration cooling tank 1 set of two caterpillar haul off machine 1 set of cutting machine 1 set of Stacker OUR PVC PIPE LNE NEED L*W=25M*1.5M INSTALL POWER 55KW AND RUN MACHIN ENEED MAX 30KW |
3 set |
| THE FOLLOWING are the auxiliary machine | |
| SHR300/600 hot and cold mixer to mix all material with formula WITH MOTOR AND INVERTER 55KW | 1 set |
| PVC pipe belling machine with U type mould | 1 set |
|
10HP air cooling industrial chiller with Panasonic japan Electrical parts are Schneider ,France Water pump : made in Taiwan |
1 set |
|
SWP360 crusher WITH MOTOR 11KW OUTPUT 300-400KG/H |
1 set |
|
SWF500 PVC miller/pulvertizer machine WITH MOTOR 45KW |
1 set |
| air compression screw machine 15kw | 1 set |

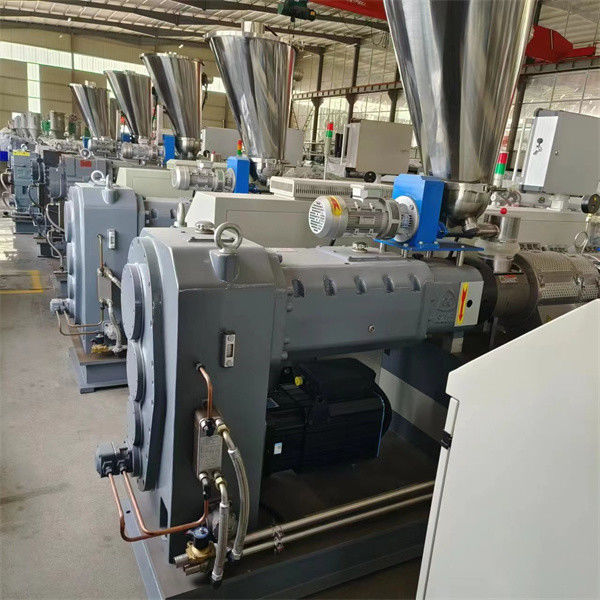

1. Conical Double Screw Extruder
|
Screw, barrel design and manufacturing absorb European advanced technology ﹡Screw and barrel material:38CrMoAlA,nitriding treated ﹡adopt original famous electric components with high steady running quality . Eg: RKC or Omron temperature controller, AC speed regulator,low-voltage breaker adopts Schneider or Siemens ﹡Gearbox adopt high torque, low noise, hard gear tooth face gear box ﹡Self protective system: current of motor overload automatic stop protection screw displacement automatic stop protection Lubrication oil starvation automatic alarm device Screw and barrel |
|||
| 1 | Screw Diameter | mm | ￠51/105 |
| 3 | Material of Screw and Barrel | / | 38CrMoAlA Nitrogen Treatment |
| 4 | Depth of nitration case | mm | 0.4-0.7mm |
| 5 | Hardness of nitration | HV | >940HV |
| 6 | Roughness of the surface | Ra | 0.4un |
| 7 | Hardness of double alloys | HRC | 55-62 |
| 8 | Depth of double alloys | mm | >2 |
| 9 | Heating Power | KW | 24 |
| 10 | Barrel Heating | / | Casting Aluminum Heater |
| 11 | Barrel Cooling | / | Low noise blower cooling |
| Transmission case | |||
| 12 | Material of gear and shaft | / | Adopt high strength alloy, carburizing and quenching, grinding |
| 13 | Gear precision and hardness | / | 6grade, HRC 54-62 |
| 14 | Oil sealing | All sealing adopt good products | |
| 15 | Screw Safeguard | / | Automatic screw displacement alarm |
