Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: extrusion plastic pipes
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 8888-33333usd
Packaging Details: film
Delivery Time: 65 days
Payment Terms: TT , L/C
Supply Ability: 28 sets
Name: |

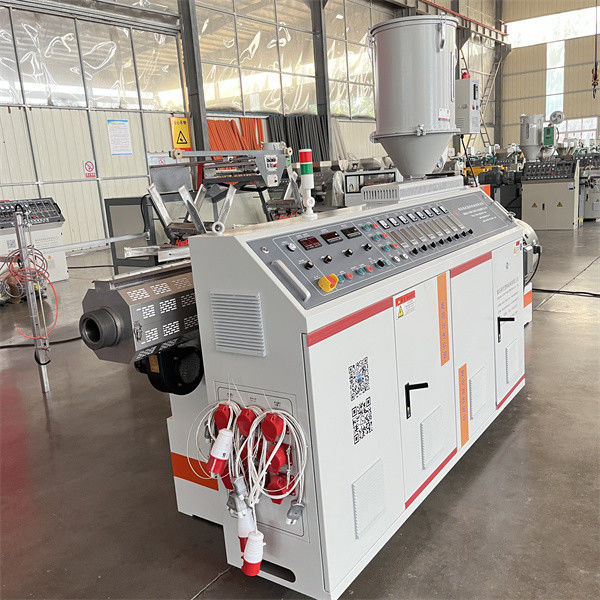

Single Screw Extruder |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
Plastic Single Screw Extruder |
Extruder: |
High Speed Single Screw Extruder |
Mould: |
Pipe Mold Machine |
Pipe Weld: |
Polypropylene Pipe Welding Machine |
Warranty: |
1 Year |
Pipe Output: |
Tube Extrusion |
Name: |
Single Screw Extruder |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
Plastic Single Screw Extruder |
Extruder: |
High Speed Single Screw Extruder |
Mould: |
Pipe Mold Machine |
Pipe Weld: |
Polypropylene Pipe Welding Machine |
Warranty: |
1 Year |
Pipe Output: |
Tube Extrusion |
Plastic Extrusion Machinery can be used to making plastic pellets like PVC/PE/PP/ABS/PET/PPR /PPH /PA an so on,and also used for produce PP/PE pipe, PVC hose,PP-R pipe,HDPE pipe and with pipe extrusion downstream machines,such as die head, vacuum calibration tank, cooling tank, haul off machine,cutting machine, and stacking table,Printer and crusher and miller machine and so on.
SJ45/33
| Screw diameter | 45 mm |
| L/D | 33:1 |
| Motor power | 30kw |
| Rotating speed of screw | 80 r/min |
| Heating power | 12kw |
| Extrusion capacity | 65kg/h |
| Center height | 1000 mm |
| Weight | 800kg |
| Dimension | 2150 x 1200 x 1500mm |
| Extruder speed adjusting way | Frequency conversion |
| Barrel temperature adjusting way |
Heating: cast aluminum heater Cooling: 4 sections by air |
| Material of screw and barrel |
38CrMoAlA Azotizing on surface 0.4～0.7mm Rigidity: above 700 HV |
| Drive way | Hard tooth gearbox |
SJ65/33
| Diameter of screw | 65mm |
| Rotating speed of screw | 1-100r/mim |
| L/D | 33:1 |
| Power of main motor | 75kw |
| Heating power of barrel | 22kw |
| Output | 200kg/h |
| Center height | 1000mm |
| Weight | 1500kg |
| Dimension | 2700 x 1300 x 1500mm |
| Timing way of mainframe | Frequency conversion |
| Temperature control of barrel |
Heating: cast aluminum heater Cooling : 4 sections wind cooling |
| Material of screw and barrel |
38CrMoAlA Nitrided on surface 0.4～0.7mm Rigidity: above 700 HV |
| Gearbox | Hard tooth face |
