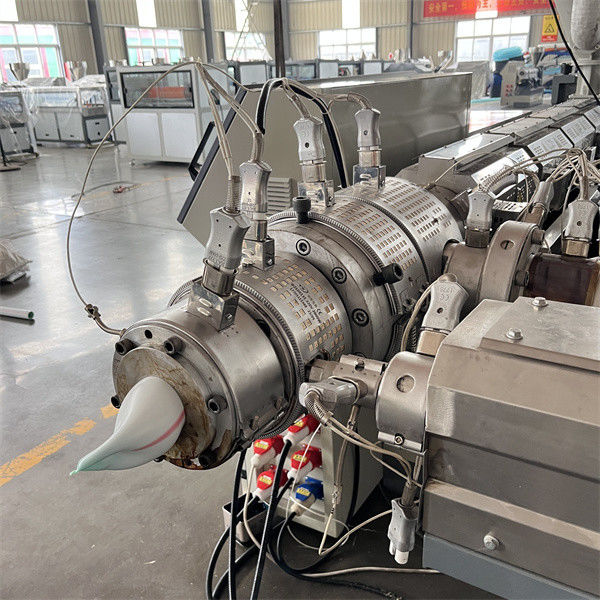

50-160mm PPH Plastic Pipe Extrusion Making Machine PPR PE PP Pipe Machine

Name: 50-160mm PPH Plastic Pipe Extrusion Making Machine PPR PE PP Pipe Machine
Brand: QINGDAO CUISHI PLASTIC MACHINERY CO.,LTD
SKU: PPR pipe extrusion plastic extruder
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wangyuan

Certification: SGS

Model Number: PPR pipe extrusion plastic extruder

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 38888-45333usd

Packaging Details: film

Delivery Time: 60 days

Payment Terms: TT , L/C

Supply Ability: 28 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                ppr pp pipe machine, plastic pp pipe machine, ppr pp pipe extrusion machine


Name:	Plastic PPR Water Supply Extruder	Warranty:	1 Year
Application:	Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine	Extruder Model:	SJ60/38 With 45kw
Extruder:	High Speed Single Screw Extruder	Mould:	Plastic Three Layers Solid Wall Pipe Mould
Pipe:	ABA / ABC Structure	Pipe Output:	150-250kg.h

Name:	Plastic PPR Water Supply Extruder
Warranty:	1 Year
Application:	Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine
Extruder Model:	SJ60/38 With 45kw
Extruder:	High Speed Single Screw Extruder
Mould:	Plastic Three Layers Solid Wall Pipe Mould
Pipe:	ABA / ABC Structure
Pipe Output:	150-250kg.h

50-160mm PPH Plastic Pipe Extrusion Making Machine PPR PE PP Pipe Machine

50-160mm PPH Plastic Pipe Extrusion Making Machine PPR PE PP Pipe Machine

No.	Pipe range	Extruders	Main Motor	Output
1	16-63 PPR PE	60/36	45	180
2	20-110 PE	60/36	55	220-250
3	110-250 PE	60/36	90	360-400
4	160-315 PE	75/36	110	420-500
5	200-400 PE	75/36	132	520-600
6	315-630 PE	90/36	185	720-900

PPH Plastic Pipe Making Machine

The PPH Pipe Machine is capable of manufacturing different sorts of pipes such as PPR hot/cold water pipes,PE pipes.

The PPH Pipe Extrusion Line can also produce mono-coloe pipe with one extruder and multi-color pipe with co-extrusion die head and more extruders.

PE gas and water supplying pipes possess features of heat resistance, anti-aging, strong mechanical strength, resistance to environment stress fracture and squirm-resistance,etc.

they are favorable products used in gas transportation between cities and in water supply projects of urban areas.

PPH Pipe Making Machine

1.speed regulation. screw with independent heating zones to insure easy operation, easy trouble shooting, precise heating and curing.

2.OMRON temperature control system. Stable and reliable.

3.Circulation vaccum water cooling. (Water tower, user to add)

4.The head employed automatic screen exchange system (with a hydraulic station) to save time and reduce wastage.

About 25%-30% may be saved.

5.Mold pressure control employed digital display and a septum pressure gage. The two systems insure stable top sheet quality.

6.Winder may overturn automatically. With meter counter for length pre-setting. Winding width is adjustable.

7.High foaming times. Imported temperature control system

8.Drip Irrigation pipe making machine included two extruders, one for the inner strip and another

9.One for the outer pipes. The inner labyrinth strip was extruded same time with the outer pipe and welded together by the particular press device.

The advantages of this line is fast cooling with high speed and precise processing,the stable speed was up to 250-300meters/min.
