Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: PE pipe extrusion line equipment
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 699999-178888usd
Packaging Details: film
Delivery Time: 100 days
Payment Terms: TT , L/C
Supply Ability: 2 sets
Name: |
HDPE Multi-Layer Co-Extrusion Water Supply Pipe Three/Two Layers Drainage HDPE Pipe Extrusion Line |
Warranty: |
1 Year |
Application: |
Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine |
Extruder Model: |
SJ75/38 And SJ65/33 With 132kw AC Motor |
Extruder: |
High Speed Single Screw Extruder |
Mould: |
Big Diameter Plastic Drainage Multi-Layers HDPE Solid Wall Pipe Mould |
Pipe: |
Three Layers Or Five Layers Pipe Extruding Machine |
Pipe Output: |
600-800kg/h |
Name: |
HDPE Multi-Layer Co-Extrusion Water Supply Pipe Three/Two Layers Drainage HDPE Pipe Extrusion Line |
Warranty: |
1 Year |
Application: |
Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine |
Extruder Model: |
SJ75/38 And SJ65/33 With 132kw AC Motor |
Extruder: |
High Speed Single Screw Extruder |
Mould: |
Big Diameter Plastic Drainage Multi-Layers HDPE Solid Wall Pipe Mould |
Pipe: |
Three Layers Or Five Layers Pipe Extruding Machine |
Pipe Output: |
600-800kg/h |

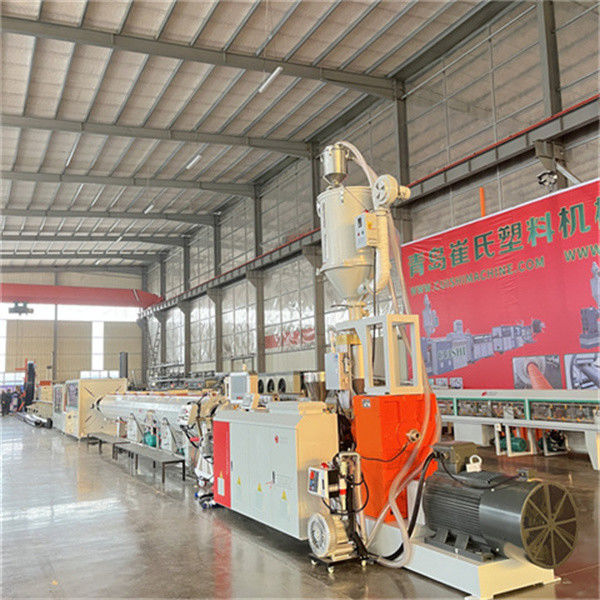

HDPE Multi-Layer Co-Extrusion Water Supply Pipe Three/Two Layers Drainage HDPE Pipe Extrusion Line
Process flow of HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine:
Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing
Main Features of HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-10 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.
