Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: 16-160mm
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 3666-16888usd
Packaging Details: film
Delivery Time: 30 days
Payment Terms: TT , L/C
Supply Ability: 66 sets
Name: |
Vacuum Calibration Tank |
Motor: |
Power Of Vacuum Pump Motor |
Power Of Water Pump: |
7.5kw |
Extruder Power: |
35kw |
Material: |
304# Stainless Steel |
Application: |
Pipe Vacuum Tank |
Pipe Diameter: |
16-160mm |
Total Power: |
18KW |
Name: |
Vacuum Calibration Tank |
Motor: |
Power Of Vacuum Pump Motor |
Power Of Water Pump: |
7.5kw |
Extruder Power: |
35kw |
Material: |
304# Stainless Steel |
Application: |
Pipe Vacuum Tank |
Pipe Diameter: |
16-160mm |
Total Power: |
18KW |

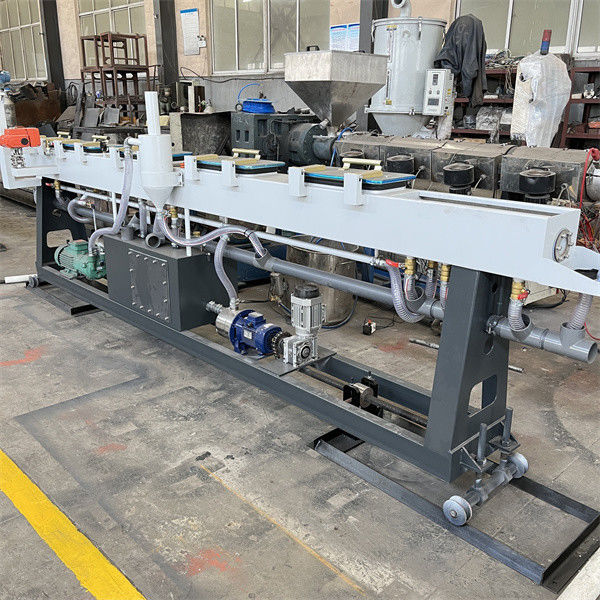

Plastic Vacuum Calibration Water Tank For PE Pipe Extrusion Line
vacuum cooling tank pipe extrusion machine plastic tube making machine
|
Model
|
Screw diameter
|
L/D
|
Extruder Qty
(set)
|
Pipe range
(mm)
|
Capacity (kg/h)
|
Main power
(kw)
|
Line length
(m)
|
|
PPR pipe 16-63mm
|
65mm
|
28:1 or 30:1
|
1
|
16-63
|
100-150
|
55
|
30
|
|
PPR pipe 63-160mm
|
65mm or 75mm
|
28:1 or 30:1
|
1
|
63-160
|
120-180
|
75/90
|
42
|
|
PPR glass fiber pipe 20-63mm
|
65mm+ 50mm or 65mm
|
28:1 or 30:1
|
2 or 3
|
20-63
|
120-220
|
110
|
35
|
Vacuum forming machine
| Power of vacuum pump motor | 3kw x 2 water-ring vacuum pump |
| Power of water pump | 3kw x 2 |
| Power of lengthways motor | 1.1 kw cycloid |
| Material | Stainless steel |
| Position and method of cooling spray | 4 sets spray-pouring cooling |
| Material and quantity of muzzle | ABS x 200 pcs. |
| Motion range of forward and backward | ±500mm, motor drive |
| Up-down adjusting range | ±80mm, by manual |
| Dimension | 9000 x 450 x 1400 mm |
| Weight | 1400kg |
manufacturer PE 110-315mm PE pipe line pp pipe extrusion line
75/33 SJ90/33 SJ75/38 SJ90/38 single screw extruder with Siemens Beide motor,Schneider contactor and Ormon temperature control (that can customed made touch screen by your requirements )
Plastic Pipe Machine is a highly efficient and reliable extrusion production line for plastic pipe production. The machine is compact and easy to operate, and can be used in various production lines.
Power threading equipment is used to create threads on various types of pipes, including corrugated pipes. However, it's important to note that power threading is typically not recommended for corrugated pipes due to the potential for damage and deformation. Corrugated pipes are designed with a flexible structure to accommodate movement and changes in shape, and power threading can compromise their integrity.
Instead, if you need to connect or join corrugated pipes, it's recommended to use specialized fittings or connectors designed specifically for corrugated pipes. These fittings are typically easy to install and do not require power threading.
If you still require information on power threading equipment for other types of pipes, such as rigid or non-corrugated pipes, please let me know, and I'll be happy to provide more details.
|
Model
|
Pipe Range (mm)
|
Output Capacity (kg/h)
|
Main Motor Power (kw)
|
|
PE63
|
16 - 63
|
150 - 300
|
45 - 75
|
|
PE110
|
20 - 110
|
220 - 360
|
55 - 90
|
|
PE160
|
50 - 160
|
300 - 440
|
75 - 110
|
|
PE250
|
75 - 250
|
360 - 500
|
90 - 132
|
|
PE315
|
90 - 315
|
440 - 640
|
110 - 160
|
|
PE450
|
110 - 450
|
500 - 800
|
132 - 200
|
|
PE630
|
250 - 630
|
640 - 1000
|
160 - 250
|
|
PE800
|
315 - 800
|
800 - 1200
|
200 - 355
|
