Product Details
Place of Origin: China
Brand Name: wangyuan
Certification: SGS
Model Number: Sj75/33 sj90/33 sj120/33 sj75/38 sj90/38 extruder
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 13428-37143
Packaging Details: film
Delivery Time: 50days
Payment Terms: L/C T/T
Supply Ability: 5 set per month
Pipe Use: |
Carbon Sprial Power Conduit Pipe |
Pipe Shape: |
With Customer Needs Sample Or Drawing |
Pipe Diameter: |
HDPE Perforated Drain Greening Seepage Pipe Blind Ditch Filtering Pipe 40-300mm |
Pipe OD: |
16-130mm |
Pipe Name: |
PE Pipe Extrusion Line |
Pipe Use: |
Carbon Sprial Power Conduit Pipe |
Pipe Shape: |
With Customer Needs Sample Or Drawing |
Pipe Diameter: |
HDPE Perforated Drain Greening Seepage Pipe Blind Ditch Filtering Pipe 40-300mm |
Pipe OD: |
16-130mm |
Pipe Name: |
PE Pipe Extrusion Line |

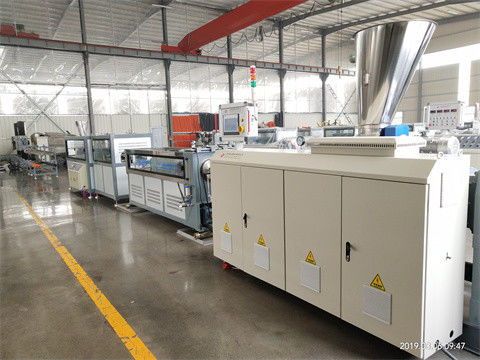

carbon sprial power conduit pipe extrusion making machine
This production line is mainly used to produce PE spiral pipes which are largely used as protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities,constructions of express way, port, etc. These pipes are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc.
PP PE material plastic Flexible corrugated pipe
HDPE Perforated Corrugated Pipe, Flexible Permeable Pipe,Hard Permeable Pipe, Blind Ditch, Pre-stressed Plastic Corrugated Pipe, HDPE Carbon Spiral Seepage Drainage Pipe, etc.
HDPE Perforated Drain Greening Seepage Pipe Blind Ditch Filtering Pipe 40-300mm
|
Size
|
M/ Roll
|
Outside of Roll
|
Roll Height
|
|
Φ40 mm
|
200m
|
115cm
|
45cm
|
|
Φ50 mm
|
200m
|
140 cm
|
50 cm
|
|
Φ65 mm
|
100m
|
135 cm
|
45 cm
|
|
Φ80 mm
|
100m
|
145 cm
|
60 cm
|
|
Φ100 mm
|
100m
|
165 cm
|
60 cm
|
|
Φ125 mm
|
50 m
|
200 cm
|
45cm
|
|
Φ150mm
|
50 m
|
190 cm
|
50 cm
|
|
Φ175mm
|
50 m
|
230 cm
|
40 cm
|
|
Φ200mm
|
50 m
|
250 cm
|
65cm
|
Haul-off unit: The haul-off unit consists of one or more caterpillar tracks or belts that grip the cooled pipe and pull it at a constant speed. This ensures uniformity and consistency in the pipe's dimensions and corrugation pattern. The haul-off unit's speed can be adjusted to control the production rate.
Cutting system: Once the pipe is pulled by the haul-off unit, a cutting system is employed to cut the pipe into desired lengths. This can be done using a saw or a knife-like cutting mechanism.
Winding system: Finally, the cut pipes are wound onto a spool or coil using a winding system. This makes it easier for transportation and storage.
It's important to note that the specific design and features of a PE spiral corrugated pipe extrusion machine can vary among manufacturers. The machine's capacity, control systems, and auxiliary equipment may also differ based on the desired pipe specifications and production requirements.
