Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: Sjsz55/110 sjsz65/132 sjsz80/156 sjsz92/188
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 28888-68888usd
Packaging Details: film
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 56 sets
Material: |
PVC Granule Or PVC Powder |
Pipe Use: |
Electric Conduit, Building Drainage, Sewage Pipe |
Cutting Unit: |
Planetary Cutting |
Pipe Diameter: |
16-630mm |
Extruder Model: |
SJZ51/105 65/132 80/156 92/188 |
Haul-off Unit: |
2-6 Claws |
Material: |
PVC Granule Or PVC Powder |
Pipe Use: |
Electric Conduit, Building Drainage, Sewage Pipe |
Cutting Unit: |
Planetary Cutting |
Pipe Diameter: |
16-630mm |
Extruder Model: |
SJZ51/105 65/132 80/156 92/188 |
Haul-off Unit: |
2-6 Claws |

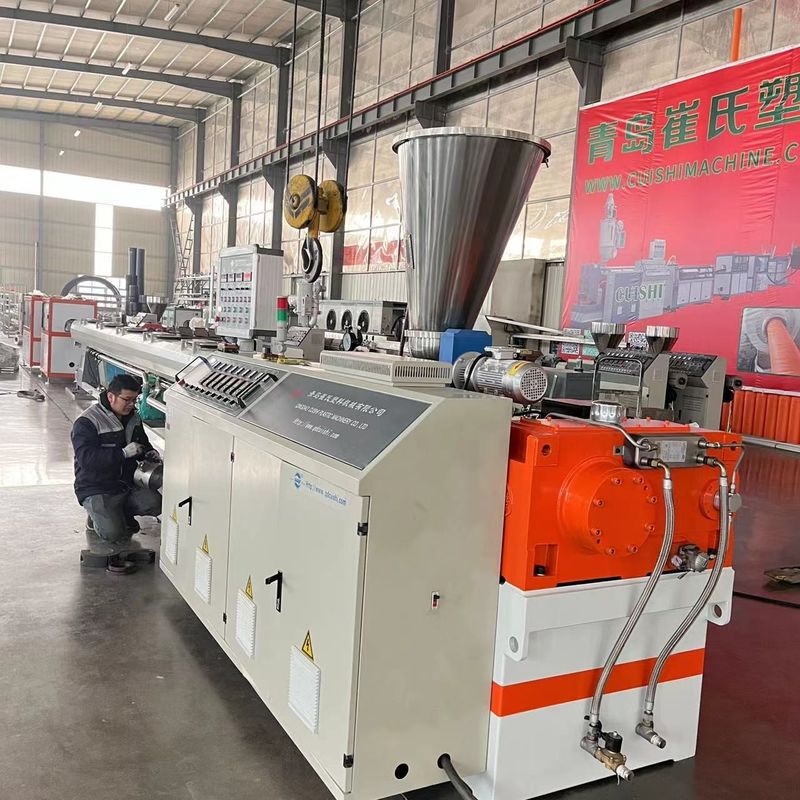

Conical Twin Screw Extruder Sewage PVC Pipe Extruder Making Machine CPVC Pipe Extrusion Equipment
pvc pipe extruder making machine manufacturer
PVC pipe making machine is used to produce UPVC/PVC pipe with diameter from 16 up to 800mm, which is used for electric conduit, building drainage, sewage pipe, water supply pipe, well casing pipe, agricultural irrigation pipe and so on.
It’s mainly composed by conical twin screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.
By changing dorn or mould lip, it can produce several diameter or wall thickness on same machine.
| Model | PVC-63 | PVC-110 | PVC-160 | PVC-250 | PVC-315 | PVC-450 | PVC-630 | PVC-800 |
| Applicable OD(mm) | 16-63 | 20-110 | 50-160 | 75-250 | 110-315 | 200-450 | 315-630 | 500-800 |
| Extruder model | 55/110 | 55/110 | 65/132 | 80/156 | 80/156 | 92/188 | 92/188 | 105/216 |
| Capacity (kg/h) |
150 | 180 | 250 | 350 | 400 | 600 | 750 |
1300 |
PVC one cavity production line
Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder,Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your
requirements.
PVC double-pipe production line
The production line is developed with the advanced technology . The main machine is SJSZ55/120 or SJSZ65/132 SJSZ80/156 SJSZ92/188 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
PVC four cavity production line
Four cavity PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5
ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
