Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: Sj65/30 pvc suction pipe extruder
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 11428-27143
Packaging Details: film
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 56 sets
Pipe Diameter: |
20-110mm |
Process: |
By Extruder Making |
Use: |
Irrigation And Vaccuum Pump |
Pipe Name: |
Pvc Suction Soft Reinforced Hose Extruder |
Pipe Material: |
Pvc Powder Or Pvc Granule |
Pipe Packing: |
Winder And Package By Film |
Pipe Diameter: |
20-110mm |
Process: |
By Extruder Making |
Use: |
Irrigation And Vaccuum Pump |
Pipe Name: |
Pvc Suction Soft Reinforced Hose Extruder |
Pipe Material: |
Pvc Powder Or Pvc Granule |
Pipe Packing: |
Winder And Package By Film |
Drip Irrigation Hoses Production Lines PVC Spiral Reinforce Pipe Machine
Flexible Plastic Reinforced PVC Helix Water Pump Suction Discharge Spiral Tube Pipe Conduit Line Hose
Plastic PVC spiral suction reinforced soft hose pipe extruder extrusion production line
PVC Suction Soft Spiral Reinforced Hose Extruder
Pressureproof PVC Spiral Suction Reinforced Pipe Extruder Plastic Spiral Water Pipe Making Machine

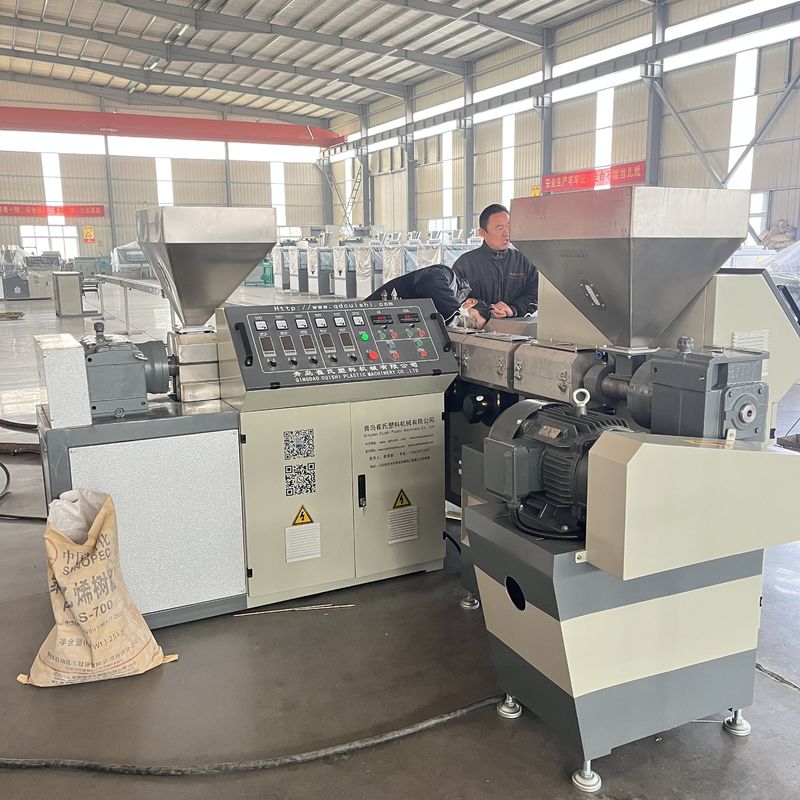

This PVC Suction Soft Spiral Reinforced Hose Extruder is designed to produce PVC soft spiral reinforced pipe, which is widely used in industry , agriculture , architecture , irrigation market and so on. PVC Suction Soft Spiral Reinforced Hose Extruder consists of two sets single screw plastic extruders, mould, forming machine,cooling water tank, rotatory haul off machine and winder.
| Extruder model | First extruder | SJ-55x30 | SJ-65 x30 |
| Second extruder | SJ-45x25 | SJ-65x25 | |
| Diameter range(mm) | Ø 25- Ø50 | Ø64- Ø 150 | |
| Haul-off speed(m/min) | 2-10 | 0.2-2 | |
| Max. output (kg/h) | 20-40 | 40-75 | |
| Total installed power(kw) | 31 | 58 | |
| Actual power consumption(kw) | 21 | 40 | |
| Overall dimension LxWxH(m) | 16x4x2 | 16x5x2.5 | |
| Overall weight(kg) | 3ton | 4ton | |
1) PVC Suction Soft Spiral Reinforced Hose Extruder is used to produce PVC soft spiral reinforced transparent pipe;
2) PVC Suction Soft Spiral Reinforced Hose Extruder has dvantages of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running;
3) It's Suitable for conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge;
4) PVC Suction Soft Spiral Reinforced Hose Extruder is mainly used in machinery, chemical industry, building, irrigation and vacuum pump, etc.
Specification
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 3/4 | 19 | 23 | 6 | 90 | 18 | 270 | 230 | 50 |
| 1 | 25 | 29 | 6 | 90 | 18 | 270 | 290 | 50 |
| 1-1/4 | 32 | 38 | 6 | 90 | 18 | 270 | 400 | 50 |
| 1-1/2 | 38 | 46 | 6 | 90 | 18 | 270 | 650 | 50 |
| 2 | 50 | 56 | 5 | 75 | 15 | 225 | 700 | 50 |
| 2-1/2 | 63 | 71 | 4 | 60 | 12 | 180 | 1170 | 30 |
| 3 | 75 | 83 | 3 | 45 | 9 | 135 | 1300 | 30 |
| 4 | 100 | 110 | 3 | 45 | 9 | 135 | 2300 | 30 |
| 5 | 125 | 137 | 3 | 45 | 9 | 135 | 3300 | 30 |
| 6 | 152 | 166 | 2 | 30 | 6 | 90 | 5500 | 20 |
| 8 | 200 | 216 | 2 | 30 | 6 | 90 | 6700 | 10 |
| 10 | 254 | 270 | 2 | 30 | 6 | 90 | 10000 | 10 |
| 12 | 305 | 329 | 2 | 30 | 6 | 90 | 18000 | 10 |
| 14 | 358 | 382 | 2 | 30 | 6 | 90 | 20000 | 10 |
| 16 | 408 | 432 | 2 | 30 | 6 | 90 | 23000 | 10 |
